Sanitary isolation washing machine series

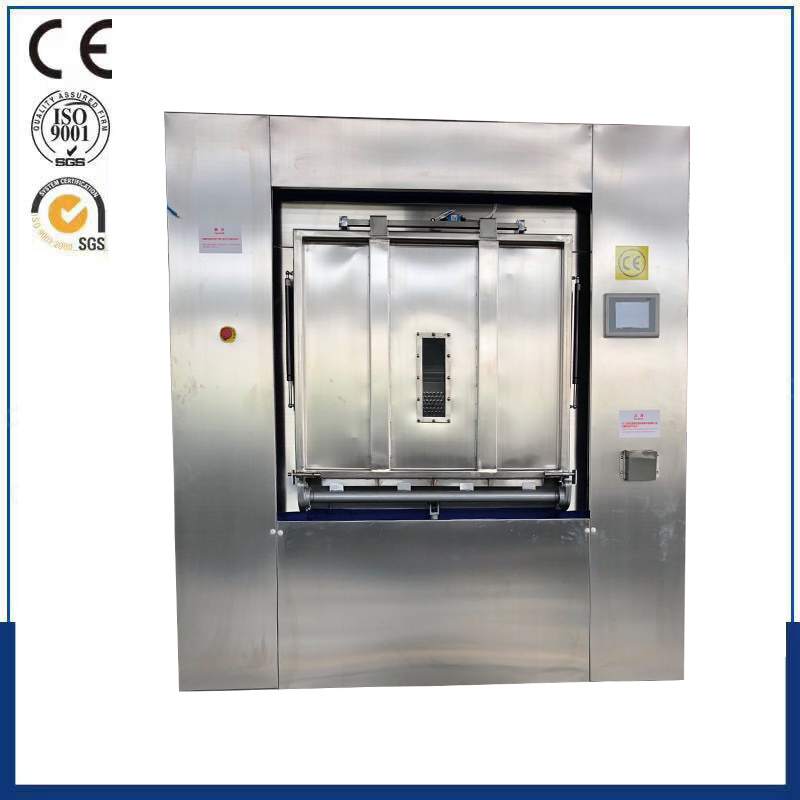

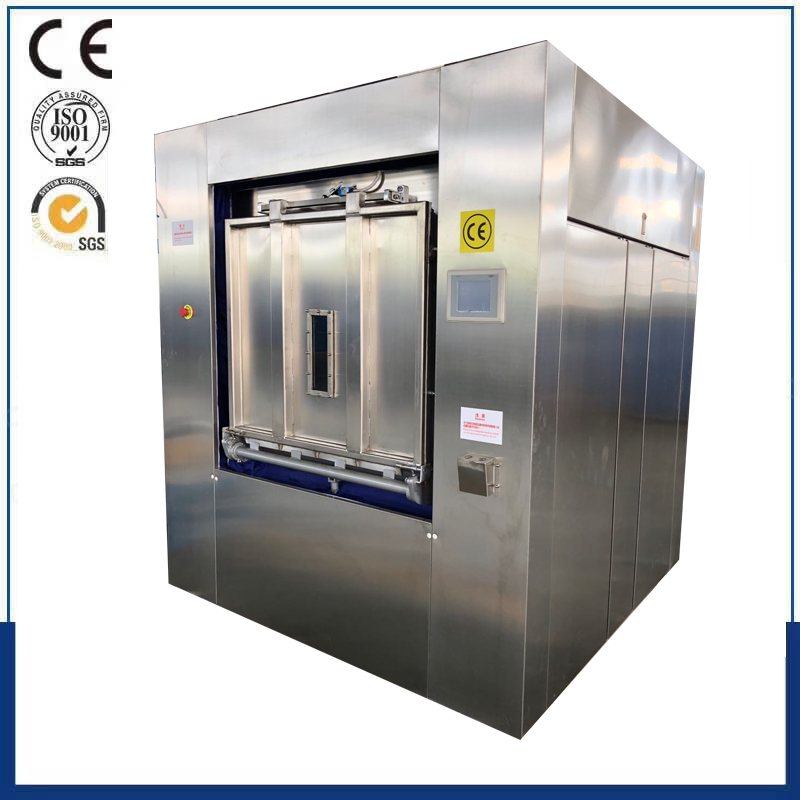

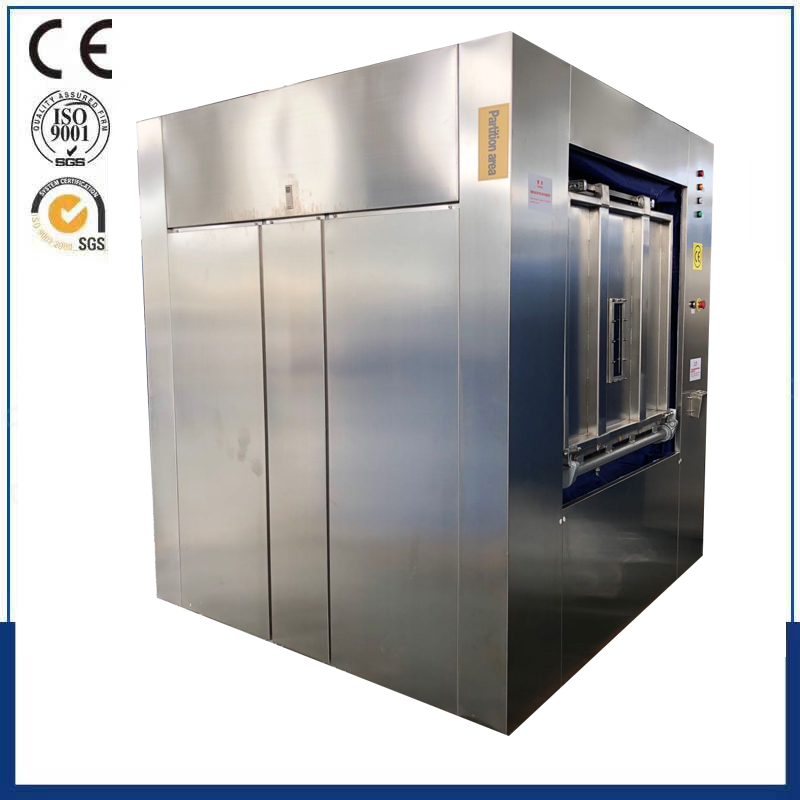

BW30Kg Sanitary Isolation Washing Machine
-
BW30Kg Sanitary Isolation Washing Machine
-
BW50Kg Sanitary Isolation Washing Machine -
BW100Kg Sanitary Isolation Washing Machine
一、(Main Technical specifications)
| Type | Company | BW30 | BW50 | BW100 | |
| Rated capacity(Max.) | kg | 30 | 50 | 100 | |
| Liner Size | mm | φ800*600 | φ900*800 | φ1220*853 | |
| Power supply | v/P/HZ | 380/3/50 | 380/3/50 | 380/3/50 | |
| Motor power | Kw | 4 | 5.5 | 7.5 | |
| Connection |
|
|
| |
| Cold water | DN | 1" ½ | 1" ½ | 2" | |
| Hot water | DN | 1" ½ | 1" ½ | 2" | |
| Steam | DN | 3/4" | 3/4" | 1" | |
| Overall Size |
|
|
| ||
| Width | mm | 1380 | 1580 | 1860 | |
| Depth | mm | 1380 | 1580 | 1860 | |
| Height | mm | 1700 | 1900 | 2165 |
2、 Product Introduction
The concept of sanitary isolation washing machine divides the laundry room into two independent operating areas: clean area and non clean area. The washing material is loaded into the machine door located on the side of the non clean area, and after washing, it is taken out from the machine door located on the side of the clean area. Preventing cross contamination of laundry products caused by loading and discharging from non clean areas is an ideal solution for dust-free industries and hospital laundry rooms.
