乳胶洗脱烘一体机系列

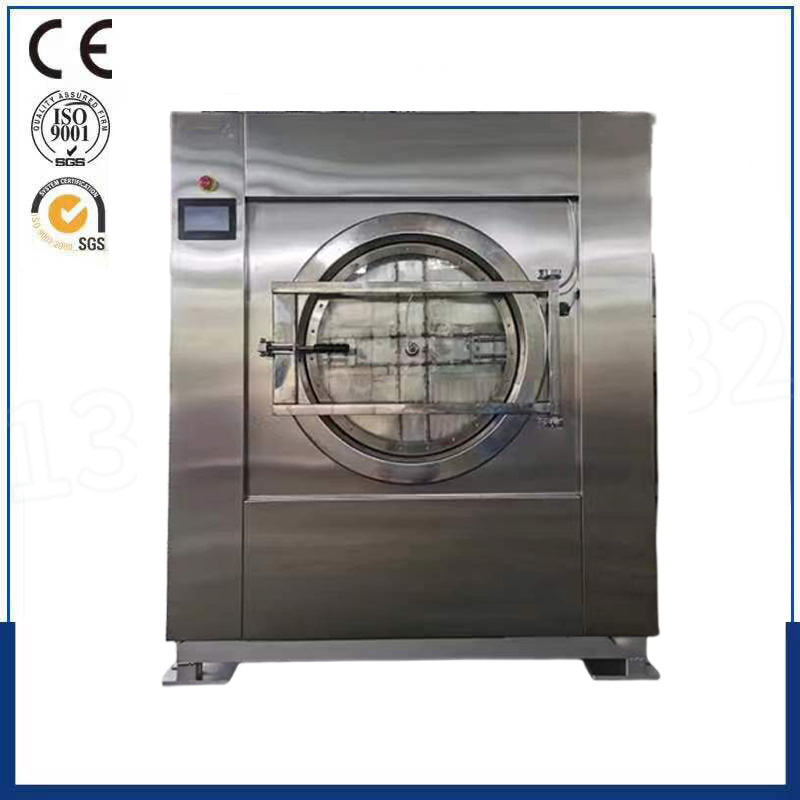

XTQ-100 乳胶洗脱烘一体机

价   格: 询价
关键词:
描   述:
  • XTQ-100 乳胶洗脱烘一体机
  • XTQ-130 乳胶洗脱烘一体机

一、乳胶洗脱烘一体机主要技术参数 Main Parameter for Washing Extracting Drying Machine


型号
Type

XTQ-100

XTQ-130

额定容量 rated capacity

最小Min

kg

70

90

最大Max

kg

100

130

转笼Drum

直径Diameter

mm

1470

1470

径深Diameter deepness

mm

880

1160

外形尺寸Overall Dimension

高Hight

mm

2750

2750

长Length

mm

1700

1700

宽Width

mm

2050

2330

转笼速度Drum speed

洗涤转速Washing rotate speed

r/min

31

31

蒸汽压力

Steam Pressure

Mpa

0.4-0.6

0.4-0.6

Pump

kw

0.37

0.37

风机

Fan Motor

kw

2.2

2.2

电机Motor

kw

11

15

变频器

Inverter

kw

18 kw-3 kw

22 kw-3 kw

排水阀Draining valve

mm

DN100*2

DN100*2

烘干汽管

Dry Steam Pipe



DN40

DN40

进水阀Water Inlet Valve

排风管

Wind Exhaust Pipe



DN250

DN250

水管Cold water pipe



3/2""

3/2"

蒸汽管Steam pipe



1"

1"

电源Power supply



Standard:380+N-3PH-50HZ


二、产品简介



乳胶洗脱烘一体机全电脑液晶人机对话操作界面,中文显示超大屏幕,有30种不同的洗涤程序可供选择,可满足任何洗涤、烘干要求, 全面实现洗、漂、汰、烘等过程的自动化。 可安全放置在任何楼层,无需做地基。 该全自动洗脱烘一体机采用变频系统,调速方便,启动平稳噪音低,节能效果明显,传动结构简单可靠。 该乳胶洗脱烘一体机全封闭后排水框架结构设计,减少污染,保持工作场地干燥清洁。内外筒均为304不锈钢。提高了使用寿命。 不锈钢精制门,气动安全装置,极大提高了使用中的安全性。后置浓油润滑泵设计,实现传动系统润滑剂自动加油,先进,人性化的关怀。 本系列机型有蒸汽加热、电加热和天燃气加热形式可供选择。 Product Introduction: The latex washing and drying integrated machine has a fully computerized LCD human-machine dialogue operation interface, a large Chinese display screen, and 30 different washing programs to choose from. It can meet any washing and drying requirements, fully realizing the automation of washing, bleaching, jigging, drying and other processes. It can be safely placed on any floor without the need for a foundation. The fully automatic washing and drying integrated machine adopts a frequency conversion system, which is easy to adjust speed, stable to start with low noise, obvious energy-saving effect, and simple and reliable transmission structure. The latex washing and drying integrated machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of 304 stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care. This series of models has options for steam heating, electric heating, and natural gas heating.
